Magnetic internal gear pumps

SAXMAG V magnetic internal gear pumps are a type of positive displacement pump designed for handling high-viscosity fluids, chemicals, and hazardous liquids with maximum safety and efficiency. Unlike traditional gear pumps, they utilize a magnetic coupling instead of a mechanical shaft seal, eliminating the risk of leaks and ensuring zero emissions of hazardous substances.

These pumps are ideal for abrasive, corrosive, and temperature-sensitive liquids, making them widely used in industries such as chemical processing, pharmaceuticals, food & beverage, and oil & gas. Their compact design, low maintenance requirements, and precise flow control make them an excellent choice for applications where safety, reliability, and efficiency are critical.

Varisco's magnetic internal gear pumps offer superior durability and resistance to harsh operating conditions, ensuring a long service life while maintaining a constant, pulse-free flow even under high pressures.

DOWNLOAD BROCHURE

Technical data

FLOW

Up to 82 m3/h

Connections

Up to 100 mm

Magnetic joint construction materials

samarium cobalt magnets internal shaft in stainless steel with ceramic coating bushings in tungsten carbide or bronze stainless steel glass

Viscosity

20 - 20.000 [mm2/s - cSt]

Pression

Up to 12 bar

Temperature

Up to 200°C

Advantages

  1. No leakage due to the absence of contact between the motor shaft and the pumped liquid.
  2. High resistance to corrosion thanks to the samarium cobalt magnets for high temperatures
  3. Force transmission with no leaks
  4. Extremely simple replacement with reduced downtime
  5. Easier maintenance with respect to versions with mechanical seal
Brochure Varisco V and SAXMAG V Series EN

Brochure Varisco V and SAXMAG V Series EN

Download

Filename
2959 0000 01_EN_Varisco Brochure Serie V - Saxmag V_LR_25-01.pdf
Size
3 MB
Format
pdf
Download
Varisco Manual - SAXMAG V - 2022.10 Rev.01 IT-EN-DE

Varisco Manual - SAXMAG V - 2022.10 Rev.01 IT-EN-DE

Download

Filename
Manual - SAXMAG V - 2022.10 Rev.01 - IT_EN_DE.pdf
Size
2 MB
Format
pdf
Download

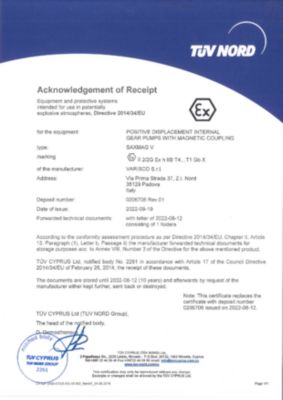

Varisco V SAXMAG Pumps ATEX Certification GAS

Varisco V SAXMAG Pumps ATEX Certification GAS

Download

Filename
Varisco Certificate SAXMAG V pumps GAS - 0206706 rev.01.pdf
Size
231 KB
Format
pdf
Download

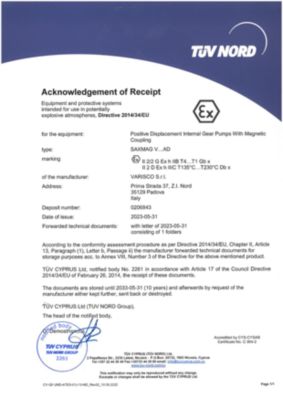

Varisco V SAXMAG Pumps ATEX Certification GAS-DUST

Varisco V SAXMAG Pumps ATEX Certification GAS-DUST

Download

Filename
Varisco Certificate SAXMAG V pumps GAS-DUST - 0206843.pdf
Size
61 KB
Format
pdf
Download

Pump Configuration

Varisco offers the SAXMAG V magnetic drive pumps in various sizes and metallurgical configurations. Available as bare shaft pumps or as complete units with an electric motor, the SAXMAG V Series provides a wide range of options. Designed for versatility, it is ideal for diverse fluid management applications, including those involving high viscosity and abrasive liquids, while ensuring leak-free and reliable operation through its magnetic drive technology.

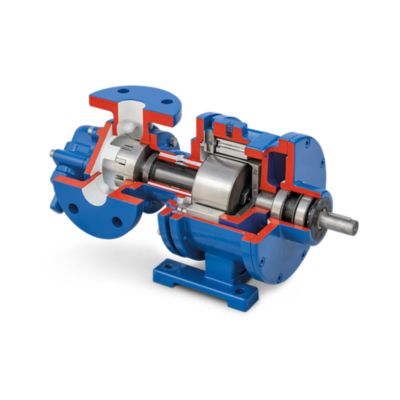

SAXMAG V

Bare shaft pump

This pump type features a compact, bare shaft design, making it adaptable to different motor and drive configurations for various industrial applications.

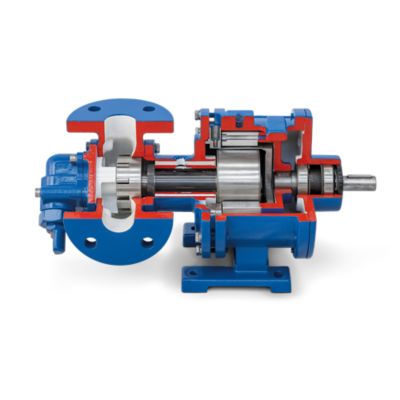

Varisco SAXMAG Pump Series

SAXMAG V BASE

Base and joint pump

A base and joint magnetic drive pump is a robust and efficient pumping solution mounted on a sturdy base frame arrange with coupling.

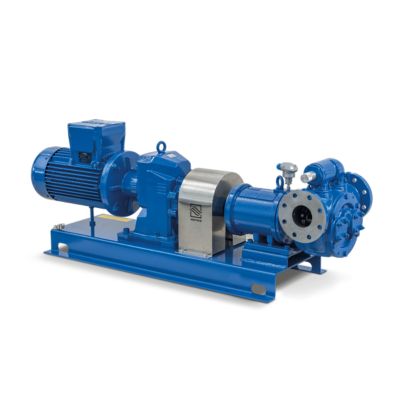

SAXMAG Electric Motor Pump

SAXMAG V SERIES

The operating principle of internal gear pump

Internal gear magnetic drive pumps are positive displacement rotary pumps that ensure leak-free operation. The flow is generated by two gears: the rotor and idler, one inside the other, separated by a crescent. As the gears rotate, liquid is drawn into the spaces created between the gears and the crescent. When the gears mesh, the liquid is forced out of the pump. This design provides a smooth, consistent flow and high capacity while maintaining a compact size, making it ideal for handling challenging fluids safely and efficiently.

Magnetic gear pump
Viscous fluids

Applications

To ensure correct pump operation, it is crucial to pick the right product with respect to the application and the chemical-physical characteristics of the fluid being treated.

Pump for adhesives
Adhesives

Glue, Epoxy resins

Pump for paints and inks
Paints and inks

Printing ink, Lacquers, Linings, Automotive paint, Additives

Pumps for petroleum products
Petroleum Products

Diesel, Fuel oil, Lubricating oil, Additives and crude oil

Pump for detergent
Soaps and cleaning products

Surfactants, Liquid cleaning products, Products for personal hygiene

Pump for glucose
Chemicals

Solvents, Acids, Alkalis, Polyols, Filled polyols, Isocyanates, Rubbers, Latex and polyester resins

Pump for glucose
Glucose

Glucose, also known as dextrose, is a simple carbohydrate often used as a quick energy source in the food industry and medicine.

Pumps for resins
Resins

Resins are synthetic materials used in a wide range of applications, from the production of construction materials to paints, from adhesives and packaging products to rubbers.
