The widest range of self-priming centrifugal pumps on the market.
The AISI 316L stainless steel versions available:
K10
- ASTM A351 CF3M stainless steel casing (equivalent from casting to AISI 316L)
- ASTM A351 CF3M stainless steel impeller (equivalent from casting to AISI 316L)
- AISI 316L stainless steel wear plate(s)
- Stainless steel shaft SAF 2205
- Silicon Carbide / Silicon Carbide mechanical seal
- FKM Elastomers
Applications: collecting leaks in chemical systems, pouring or circulating sodium hydroxide and potassium.
K20
- ASTM A351 CF3M stainless steel casing (equivalent from casting to AISI 316L)
- ASTM A351 CF3M stainless steel impeller (equivalent from casting to AISI 316L)
- AISI 316L stainless steel wear plate(s)
- Stainless steel shaft SAF 2205
- Tungsten Carbide / Carbide mechanical seal
- PTFE Elastomers
Applications: collecting leaks in chemical systems, pouring or circulating sodium hydroxide and potassium.
B10
- ASTM A351 CF3M stainless steel casing (equivalent from casting to AISI 316L) + zinc anodes
- ASTM A351 CF3M stainless steel impeller (equivalent from casting to AISI 316L)
- AISI 316L stainless steel wear plate(s)
- Stainless steel shaft SAF 2205
- Silicon Carbide / Silicon Carbide mechanical seal
- FKM Elastomers
The use of zinc anodes on the covers of the pump casing reduces galvanic corrosion of the casing when handling salty and brackish water.
Regardless of metallurgy, on request, the entire J range can include PTFE elastomers, a fluorinated material highly resistant to any type of chemically aggressive agent, except for molten alkaline metals and fluorine at high temperatures and pressures.

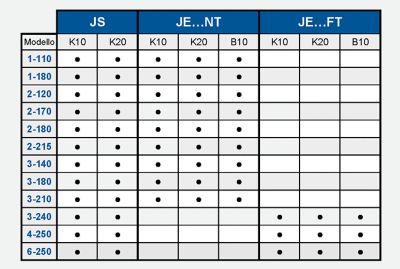

The AISI 316L stainless steel models available
Pump model identified by: inlet diameter [in] - impeller nominal diameter [mm]
JS: Free-shaft drive Varisco self-priming centrifugal pumps
JE…NT: Monoblock Varisco self-priming centrifugal pumps with WEG motor
JE…FT: Varisco self-priming centrifugal pumps with reinforced monoblock support
